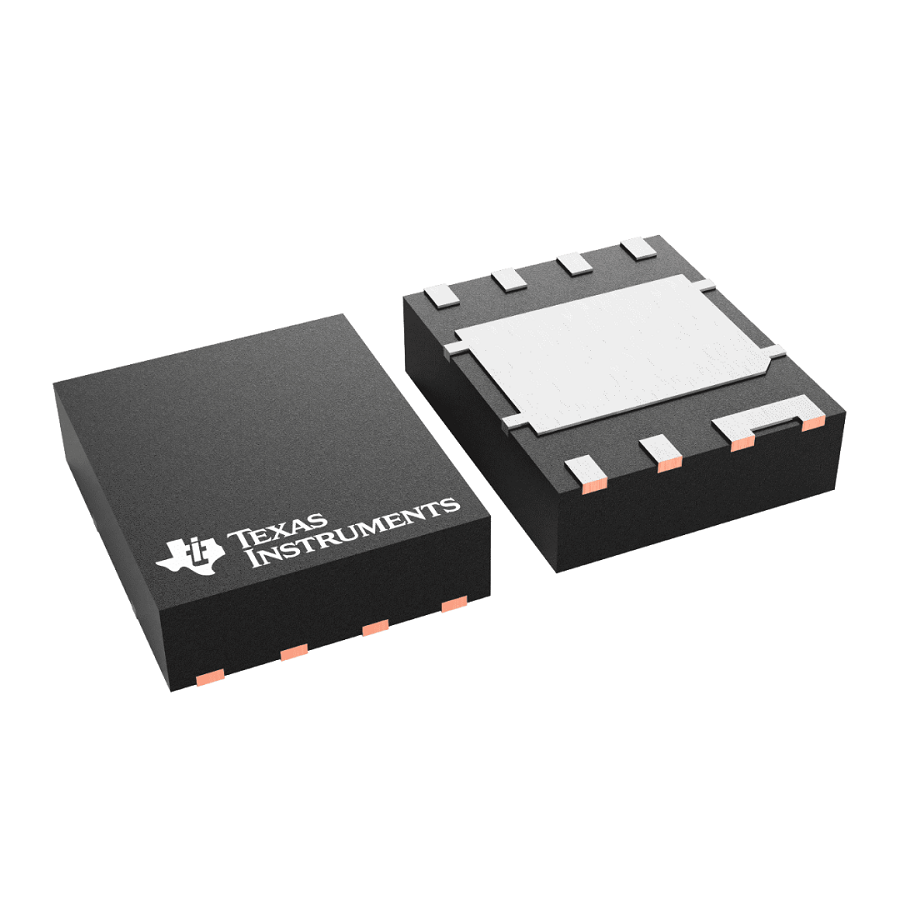

CSD87352Q5D
Manufacturer:
Texas Instruments
Mfr.Part #:
CSD87352Q5D
Datasheet:
Description:
MOSFETs LSON-8 SMD/SMT N-Channel number of channels:2 8.5 W 30 V Continuous Drain Current (ID):25 A 12.5 nC
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 6 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Packaging | Reel |
| Thickness | 1.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Output Current | 1.4 A |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Max Power Dissipation | 8.5 W |
| Power Dissipation | 8.5 W |
| Number of Channels | 2 |
| Input capacitance | 1.8 nF |
| Continuous Drain Current (ID) | 25 A |
| Drain to Source Voltage (Vdss) | 30 V |
| FET Type(Transistor Polarity) | N-Channel |
| Element Configuration | Dual |
| Fall Time | 2.7 ns |
| Rise Time | 7 ns |
| Gate Charge | 12.5 nC |
| Drain to Source Resistance | 9 mΩ, 2.8 mΩ |
| Gate to Source Voltage (Vgs) | -8 V, 10 V |
| Drain to Source Breakdown Voltage (Vds) | 30 V |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Gate to Source Threshold Voltage | 2.1 V |
Stock: 1628
Distributors
pcbx
pcbxUnit Price$1.60214
Ext.Price$1.60214
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.60214 | $1.60214 |
| 10 | $1.03276 | $10.32760 |
| 25 | $0.92359 | $23.08975 |
| 50 | $0.82596 | $41.29800 |
| 100 | $0.73866 | $73.86600 |
| 300 | $0.67617 | $202.85100 |
| 500 | $0.61897 | $309.48500 |
| 1000 | $0.53091 | $530.91000 |
| 3000 | $0.50864 | $1525.92000 |
| 5000 | $0.48731 | $2436.55000 |
